Flatbed Laminator

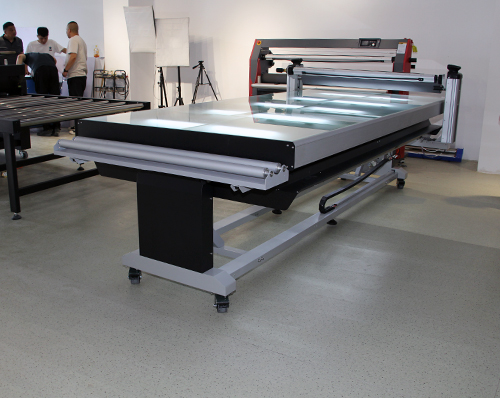

LF1732-B4 Flatbed Laminator (1.7*3.0m)
Model: LF1732-B4 Flatbed Laminator

Max Lamination Width: 1600mm/62.99”,

Max Lamination Length:  3000mm/118.11”

Max Laminating Thickness: 50mm/1.96”

Lamination Temp: Warm 0~60C/0~140F.

Share With:



EASY OPERATION

LF1732-B4 Flatbed Laminator Front Intelligent LCD Control Panel

Operation Is More Intuitive and Convenient

Adjust Lamination Temperature and Pressure

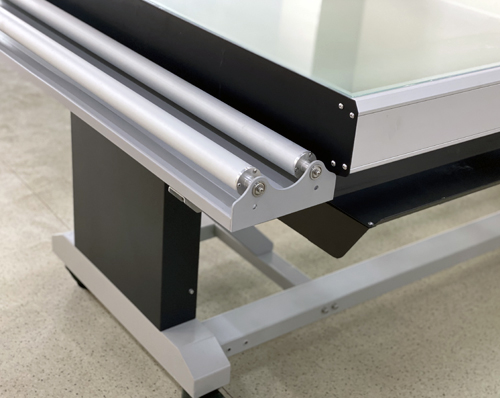

Rear Media Roll Holder

LF1732-B4 Flatbed Laminator with Media Roll Holder at end of Table

Support Lamination Film During Flatbed Laminating

















TILT TABLE PACKAGE

LF1732-B4 Flatbed Laminator uses Tilt Table Package can Save Transfer Space


















Silicon Roller of Flatbed Laminator

Can Avoid Any Bubbles and Folds during Lamination

Up and Down Roller use Silicon and Solid Seamless Steel Tube

Silicon Roller Has Long Time Service Life under High Temperature Lamination










LED LIGHTS UNDER TABLE

●LED Lights Under Lamination Table, This can help to Check Lamination Quality

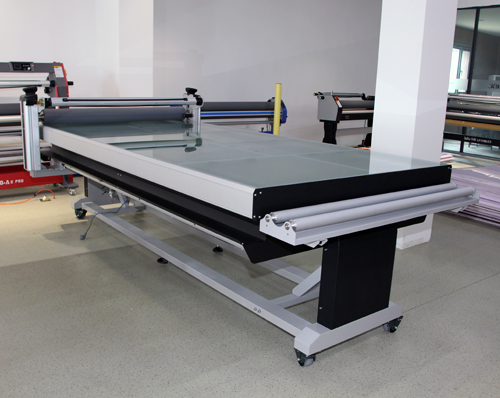

TILT TABLE AND SAFETY GLASS

●LF1732-B4 Flatbed Laminator with Tilt Table Can Save Transfer Space.

●Safety Glass Make Sure Strength of Lamination Table


















DOUBLE SIDE ROLLER LIFTING SWITCH

●Operator can Control Roller Up and Down at Any Side of Table












Technicaldata

Model

LF1732-B4 Flatbed Cold Laminator

LF1732-B4 Flatbed Warm Laminator

Lamination Type
Cold
Warm & Cold

Lamination Temp

/

0~60°C/0~140°F

Max Lamination Width (mm/inches)

1600mm (62.99''/5.24ft)

Max Lamination Length (mm/inches)
3000mm (118.11”/9.84ft)
Table Size (mm/inches)
1700mm(66.92”/5.57ft)*3200mm(125.98”/10.49ft)
Max Lamination Thickness (mm/inches)
50mm/1.96''

Laminating Type

Flat Mounting

Heating Roller
Top

Roller

Silicon

Diameter of Roller (mm/inches)

130mm/5"

Pressure/Height Adjust

Pneumatic

Working Type
Manual

Certificate

CE, RCM, ROHS

Heating

Infrared

Preheating Time

10-15 min

Voltage
110V/220V 50/60Hz
Working Size (mm/ft)
3890*2030*1235mm( 12.7*6.6*4ft)
Package Size (mm/ft)
3900*1200*2100=8.7CBM (12.7*3.9*6.8ft”)

Weight (kgs/lbs)

N.W: 500kgs(1102lbs)  G.W: 700kgs(1543lbs)

flatbed laminator usage

LeFu LF1732-B4 Flatbed Laminator Can be Widely Used in Paper and Prints, Signage and Graphic, Packaging Materials, Artwork and Crafts. Used Special for Flexible Sign, Board, Irregular Shaped Panels and Banners, Labels and Tags, Maps and Charts, Etc.
