LF1700-D4 Auto laminator
LF1700-D4 Auto Laminator (8 M/Min)
Model: LF1700-D4 Auto Laminator

Max Lamination Width: 1630mm/64″

Lamination Temp: 0~60°C/0~140°F

Max Lamination Speed: 8 M/Minute

Roller Up and Down: Pneumatic Pressure

Share With:


intelligent control system

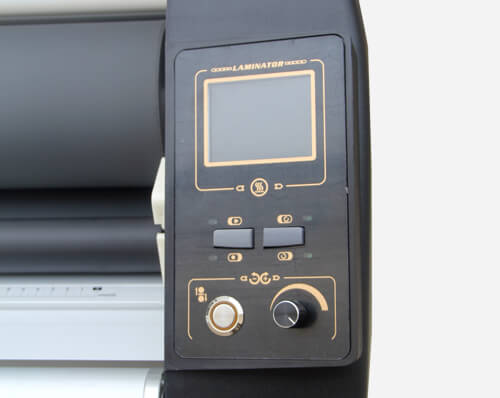

Front Intelligent LCD Control Panel

Operation Is More Intuitive and Convenient

Pulse-Type Speed Control Knob, Precise and Durable

Lamination Speed, Temperature and Lamination Statistics Display

Real-Time Meter Count Function also Recorded Lamination Meters 30 Days












Rear Safety Trimmer

3 Rear Tungsten Steel Trimmer

Tungsten Steel Trimmer Usage can be More than 15000m

Trimmer Fine-tuning Switch can Adjust Trimmers at precise position

Laminating and Vertical Cutting at same Time during lamination












ANTI-STATIC LINER

Remove Static during High Speed Lamination

Avoid Electric Parts Damaging from Static

Can Set Lamination Meter, When Closing Finish Lamination, Laminator will Stop Automatically













Silicon Roller

Can Avoid Any Bubbles and Folds during Lamination

Up and Down Roller use Silicon and Solid Seamless Steel Tube

Silicon Roller Has Long Time Service Life under High Temperature Lamination

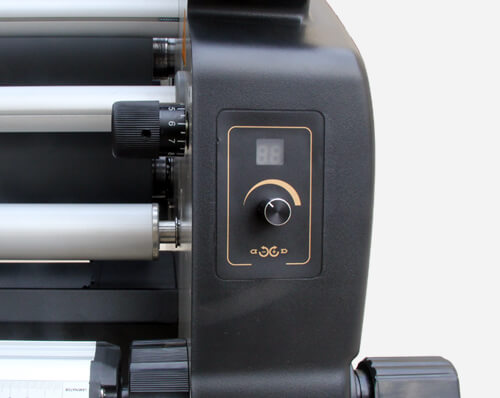

REAR CONTROL PANEL

●Lamination Sart-stop and Speed Control, Cutting Function Active.  Lamination Statistics Display

















STRENGTHEN MATERIALS BAR

●Winding Diameter is 320mm.
●Stable and Durable Frame Design can Meet 200 meters of Vinyl Sticker Lamination



















HAND SAFETY SENSOR

●Hand Safety Sensor will Protect Operator Safety
●When Foreign Matter into Laminator, Laminator Will Stop and Roll up Automatically
●After Laminator Stopped Automatically Will Be Sound and Light Alarm









Technicaldata

Model

LF1700-D4 Automaitc Roll Laminator

Max Lamination Width

1630mm/64''

Laminating Type

Roll-to-Roll

Heating Roller

Top

Max Laminating Speed

8m/Min

Max Lamination Thickness

28mm/1.1''

Lamination Type

Warm and Cold

Max Temp

0~60°C/0~140°F

Roller

Silicon

Diameter of Roller

120mm

Pressure/Height Adjust

Automatic (Pneumatic Pressure)

Hand Protection Device

Safety Laser Sensor

Anti-Static

Yes

Certificate

CE, RCM, ROHS

Heating

Infrared

Preheating Time

10-15 min

Voltage

110V/220V 50/60Hz

Power Input

1400Kw/h

Package Size
2260*860*720 1.4CBM

G.W.

240KGS

automatic roll laminatorusage

LeFu LF1700-D4 Automatic Roll Laminator can be Widely Used in Signage and Graphic Industries, Used Special for Flexible Sign, Board, Irregular Shaped Panels, Banners Etc.
