1700-D3 Laminator
LF1700-D3 Semi-auto Laminator (8 M/Min)
Model: LF1700-D3 Semi-Auto Laminator

Max Lamination Width: 1630mm/64″

Lamination Temp: 0~60°C/0~140°F (0~120°C/0~248°F Optional)

Max Lamination Speed: 8 M/Minute

Roller Up and Down: Manual

Share With:

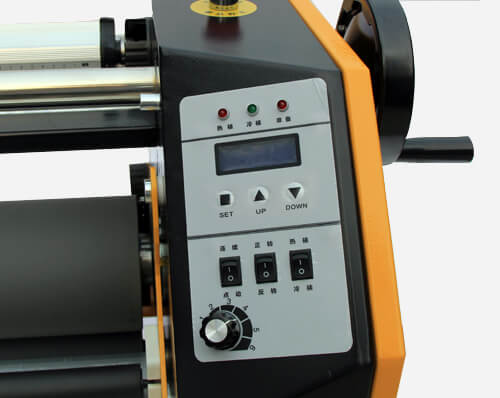

intelligent control system

Front Intelligent LCD Control Panel

Operation Is More Intuitive and Convenient

Pulse-Type Speed Control Knob, Precise and Durable

Lamination Speed, Temperature and Lamination Statistics Display
















Reversible lamination Platform

Reversible Lamination Platform

Easy to Check Lamination Quality

Up the lamination Platform can Clean Roller Easily

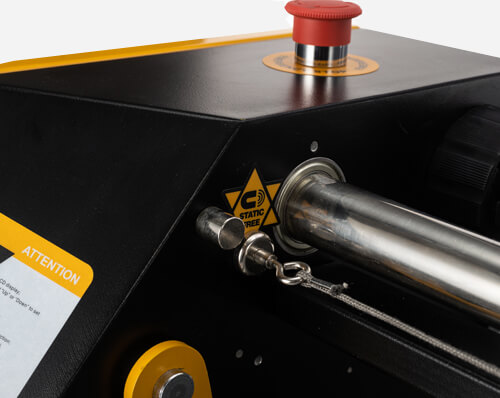

ANTI-STATIC LINER

Remove Static during High Speed Lamination

Avoid Electric Parts Damaging from Static

Can Set Lamination Meter, When Closing Finish Lamination, Laminator will Stop Automatically













Silicon Roller

Can Avoid Any Bubbles and Folds during Lamination

Up and Down Roller use Silicon and Solid Seamless Steel Tube

Silicon Roller Has Long Time Service Life under High Temperature Lamination

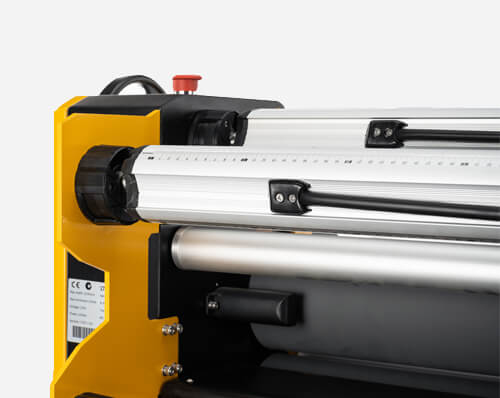

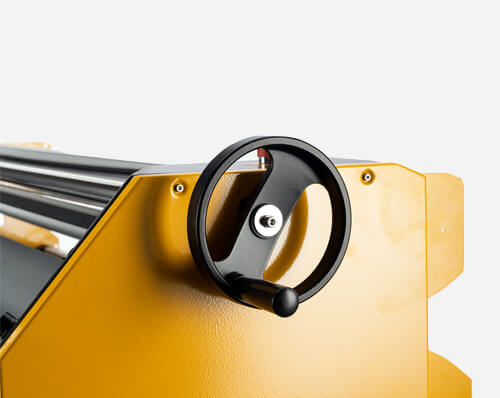

LINKAGE ROLLER UP DOWN WHEEL

●Single Side Linkage Roller Up and Down Wheel

●Keep Roller Right and Left Balance, Roll can get Enough Pressure
















STRENGTHEN MATERIALS BAR

●Winding Diameter is 320mm.

●Stable and Durable Frame Design can Meet 200 meters of Vinyl Sticker Lamination

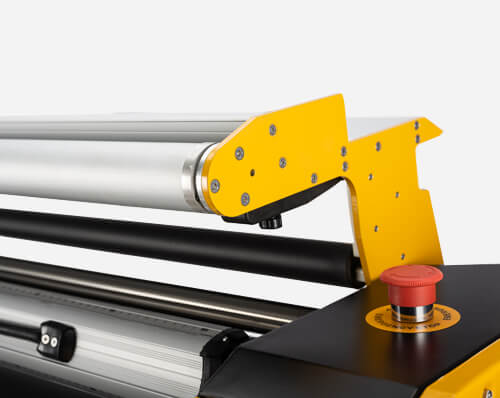

HAND SAFETY SENSOR

●Hand Safety Sensor will Protect Operator Safety

●When Foreign Matter into Laminator, Laminator Will Stop and Roll up Automatically

●After Laminator Stopped Automatically Will Be Sound and Light Alarm






Technicaldata

Model

LF1700-D3 Semi-auto Warm and Cold Laminator

LF1700-D3 Semi-auto Hot and Cold Laminator

Lamination Type
Warm & Cold
Hot & Cold

Lamination Temp

0~60°C/0~140°F

0~120°C/0~248°F

Laminating Type

Roll-to-Roll

Heating Roller

Top

Max Lamination Speed

8 M/Minute

Max Lamination Thickness

28mm/1.1''

Max Lamination Width
1630mm/64''

Roller

Silicon

Diameter of Roller

130mm

Pressure/Height Adjust

Manual

Hand Protection Device

Safety Laser Sensor

Anti Static Electricity

Yes

Certificate

CE, RCM, ROHS

Hand Safety Sensor
Yes

Heating

Infrared

Preheating Time

10-15 min

Voltage
110V/220V 50/60Hz
Package Size
2270*800*730mm 1.4CBM

Gross Weight

240KGS

automatic roll laminatorusage

LeFu LF1700-D3 Semi-auto Roll Laminator can be Widely Used in Signage and Graphic Industries, Used Special for Flexible Sign, Board, Irregular Shaped Panels, Banners Etc.
