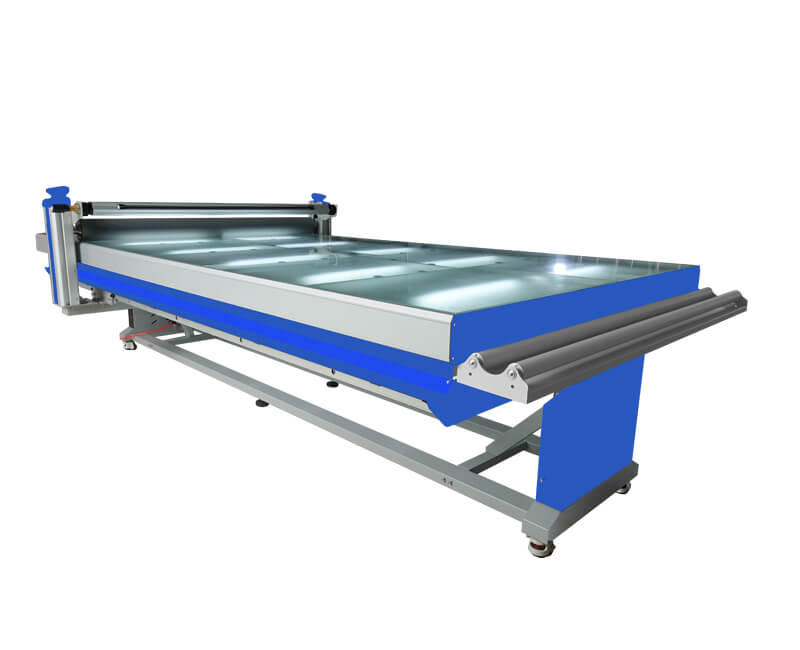

LF1325-B4 Flatbed Laminator
LF1325-B4 Flatbed Laminator (1.3*2.5m)
Model: LF1325-B4 Flatbed Laminator

Max Lamination Width: 1300mm/51.18”

Max Lamination Length: 2500mm/ 98.42”

Max Laminating Thickness: 50mm/1.96”

Lamination Temp: Warm 0~60C/0~140F.

Share With:



EASY OPERATION

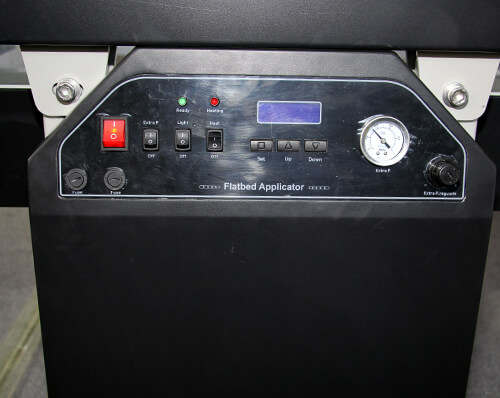

LF1325-B4 Flatbed Laminator Front Intelligent LCD Control Panel

Double Sides Roller Up and Down Switch

Adjust Lamination Temperature and Pressure

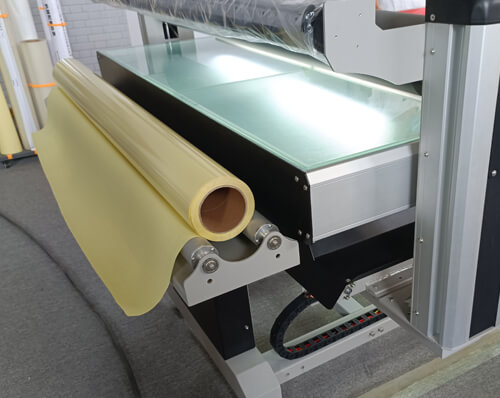

Rear Media Roll Holder

LF1325-B4 Flatbed Laminator with Media Roll Holder at end of Table

Support Lamination Film During Flatbed Laminating

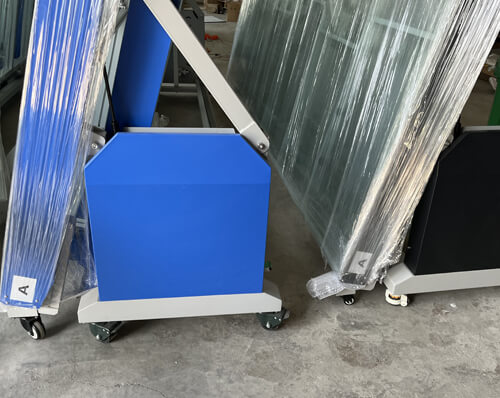

TILT TABLE PACKAGE

LF1325-B4 Flatbed Laminator uses Tilt Table Package can Save Transfer Space

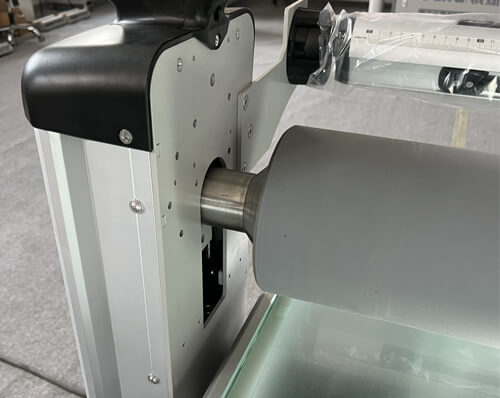

LF1325-B4 Flatbed Laminator uses Silicon Roller

Can Avoid Any Bubbles and Folds during Lamination

Up and Down Roller use Silicon and Solid Seamless Steel Tube

Silicon Roller Has Long Time Service Life under High Temperature Lamination

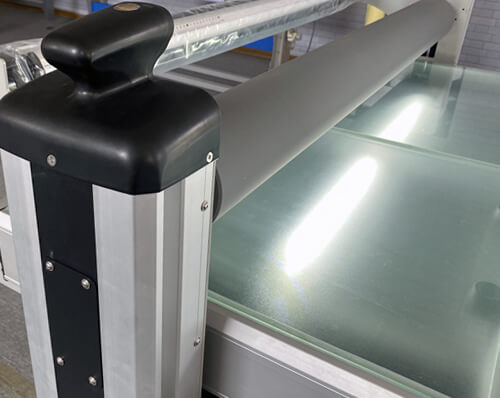

LED LIGHTS UNDER TABLE

●LED Lights Under Lamination Table, This can help to Check Lamination Quality



















TILT TABLE AND SAFETY GLASS

●LF1325-B4 Flatbed Laminator with Tilt Table Can Save Transfer Space.

●Safety Glass Make Sure Strength of Lamination Table

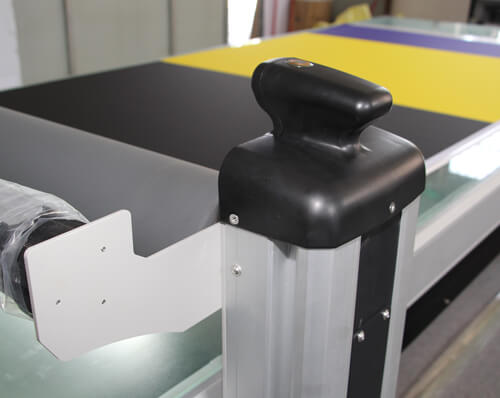

DOUBLE SIDE ROLLER LIFTING SWITCH

●Operator can Control Roller Up and Down at Any Side of Table












Technical data

Model

LF1325-B4 Flatbed Cold Laminator

LF1325-B4 Flatbed Warm Laminator

Lamination Type
Cold
Warm & Cold

Lamination Temp

/

0~60°C/0~140°F

Max Lamination Width

1300mm/51.18"

Max Lamination Length
2500mm/98.42"
Max Lamination Thickness
50mm/1.96''

Laminating Type

Flat Mounting

Heating Roller
Top

Roller

Silicon

Diameter of Roller

130mm

Pressure/Height Adjust

Automatic (Pneumatic Pressure)

Working Type
Manual

Certificate

CE, RCM, ROHS

Heating

Infrared

Preheating Time

10-15 min

Voltage
110V/220V 50/60Hz
Package Size
3200*1200*1880mm 7.2CBM

Gross Weight

500KGS

flatbed laminator usage

LeFu LF1325-B4 Flatbed Laminator Can be Widely Used in Paper and Prints, Signage and Graphic, Packaging Materials, Artwork and Crafts. Used Special for Flexible Sign, Board, Irregular Shaped Panels and Banners, Labels and Tags, Maps and Charts, Etc.
