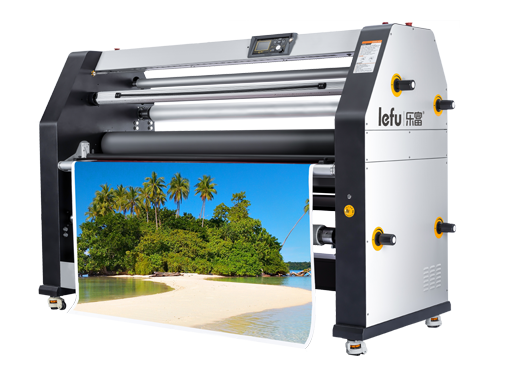

LF1700-D2 Auto Laminator
LF1700-D2 Auto Laminator (28 M/Min)
Model: LF1700-D2 Auto Laminator

Max Lamination Width: 1630mm/64″

Lamination Temp: 0~60°C/0~140°F (0~120°C/0~248°F Optional)

Max Lamination Speed: 28 M/Minute

Roller Up and Down: Pneumatic Pressure

Share With:


intelligent control system

Front Intelligent LCD Control Panel

Operation Is More Intuitive and Convenient

Pulse-Type Speed Control Knob, Precise and Durable

Lamination Speed, Temperature and Lamination Statistics Display

Real-Time Meter Count Function also Recorded Lamination Meters 30 Days












Rear Safety Trimmer

3 Rear Tungsten Steel Trimmer

Tungsten Steel Trimmer Usage can be More than 15000m

Trimmer Fine-tuning Switch can Adjust Trimmers at precise position

Laminating and Vertical Cutting at same Time during lamination












Auto Stop of Material-less

After Laminator Stopped Automatically Will Be Sound and Light Alarm

When Shortage of Lamination Materials, Laminator Will Stop Automatically

Can Set Lamination Meter, When Closing Finish Lamination, Laminator will Stop Automatically













Silicon Roller

Can Avoid Any Bubbles and Folds during Lamination

Up and Down Roller use Silicon and Solid Seamless Steel Tube

Silicon Roller Has Long Time Service Life under High Temperature Lamination

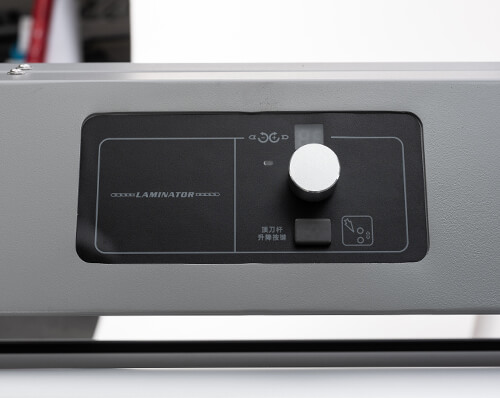

REAR CONTROL PANEL

●Lamination Sart-stop and Speed Control

●Lamination Cutting Function Active.  Lamination Statistics Display
















STRENGTHEN MATERIALS BAR


●Winding Diameter is 320mm.

●Stable and Durable Frame Design can Meet 200 meters of Vinyl Sticker Lamination

















HAND SAFETY SENSOR

●Hand Safety Sensor will Protect Operator Safety

●When Foreign Matter into Laminator, Laminator Will Stop and Roll up Automatically

●After Laminator Stopped Automatically Will Be Sound and Light Alarm






Technicaldata

Model

LF1700-D2 Automatic Warm and Cold Laminator

LF1700-D2 Autoamtic Hot and Cod Laminator

Lamination Type
Warm & Cold
Hot & Cold

Lamination Temp

0~60°C/0~140°F

0~120°C/0~248°F

Cutters

≥3 Sets

Laminating Type

Roll-to-Roll

Heating Roller

Top (Double Sides Lamination Optional)

Max Lamination Speed

28 M/Minute

Max Lamination Thickness

28mm/1.1''

Max Lamination Width
1630mm/64''

Roller

Silicon

Diameter of Roller

130mm

Pressure/Height Adjust

Automatic (Pneumatic Pressure)

Hand Protection Device

Safety Laser Sensor

Anti Static Electricity

Yes

Certificate

CE, RCM, ROHS

Hand Safety Sensor
Yes

Heating

Infrared

Preheating Time

10-15 min

Voltage
110V/220V 50/60Hz
Package Size
2270*810*1660mm 3.1CBM

Gross Weight

370KGS

automatic roll laminatorusage

LeFu Laminator LF1700-D2 Auto Laminator Can Be Widely Used in Signage and Graphic Industries, Used Special for Flexible Sign, Board, Irregular Shaped Panels, Banners, Etc.
