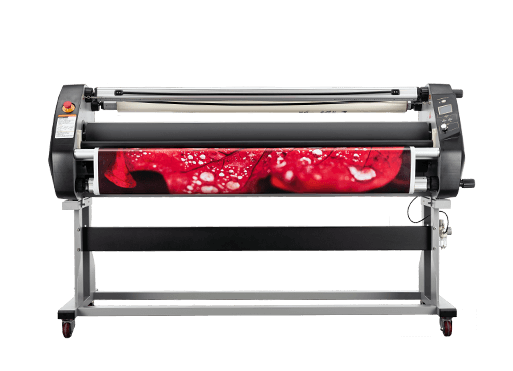

LF1700-F1 Plus Auto Laminator
LF1700-F1 Plus Auto Laminator (50 M/Min)
Model: LF1700-F1 Plus High Speed Auto Laminator

Max Lamination Width: 1630mm/64″

Lamination Temp: 0~60°C/0~140°F

Max Lamination Speed: 50 M/Minute

Roller Up and Down: Pneumatic Pressure

Share With:


intelligent control system

Front Intelligent LCD Control Panel

Operation Is More Intuitive and Convenient

Pulse-Type Speed Control Knob, Precise and Durable

Lamination Speed, Temperature and Lamination Statistics Display

Real-Time Meter Count Function also Recorded Lamination Meters 30 Days

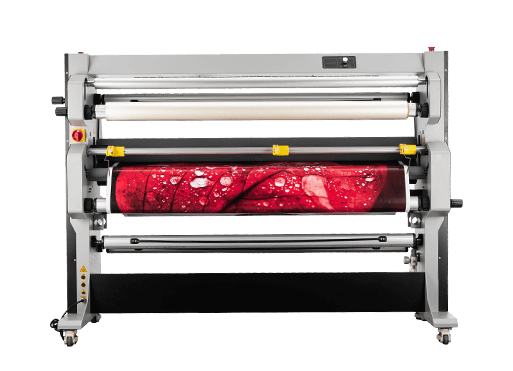

Rear Safety Trimmer

3 Rear Tungsten Steel Trimmer

Tungsten Steel Trimmer Usage can be More than 15000m

Trimmer Fine-tuning Switch can Adjust Trimmers at precise position

Laminating and Vertical Cutting at same Time during lamination












Auto Stop of Material-less

After Laminator Stopped Automatically Will Be Sound and Light Alarm

When Shortage of Lamination Materials, Laminator Will Stop Automatically

Can Set Lamination Meter, When Closing Finish Lamination, Laminator will Stop Automatically













Silicon Roller

Can Avoid Any Bubbles and Folds during Lamination

Up and Down Roller use Silicon and Solid Seamless Steel Tube

Silicon Roller Has Long Time Service Life under High Temperature Lamination










REAR CONTROL PANEL

●Lamination Sart-stop and Speed Control

●Lamination Cutting Function Active.  Lamination Statistics Display
















AIR SHAFT MATERIAL BAR

●Swing in and Out Air Shafts, Easy For Heavy Rolls Loading and Unloading

●Air Tension Button for Locked Shafts and Air-Filled, Convenient to Use


















HAND SAFETY SENSOR

●Hand Safety Sensor will Protect Operator Safety

●When Foreign Matter into Laminator, Laminator Will Stop and Roll up Automatically

●After Laminator Stopped Automatically Will Be Sound and Light Alarm






Technicaldata

Model

LF1700-F1 Plus High Speed Auto Laminator

Max Lamination Width

1630mm/64''

Laminating Type

Roll-to-Roll

Heating Roller

Upper

Max Lamination Speed

50 M/Min

Max Lamination Thickness

28mm/1.1''

Lamination Type

Warm and Cold

Max Temp

0~60°C /0~140°F

Roller

Silicon

Diameter of Roller

200mm

Pressure/Height Adjust

Automatic (Pneumatic Pressure)

Hand Protection Device

Safety Laser Sensor

Anti-Static

Yes

Certificate

CE, RCM, ROHS

Heating

Infrared

Preheating Time

10-15 min

Voltage

110V/220V 50/60Hz

Power Input

1800 Kw/h

Package Size
2270*960*1650mm 3.59CBM

G.W.

650 KGS

automatic roll laminatorusage

LeFu Laminator LF1700-F1 Plus High Speed Auto Laminator Can Be Widely Used In Signage And Graphic Industries, Used Special for Flexible Sign, Board, Irregular Shaped Panels, Banners, Etc.
